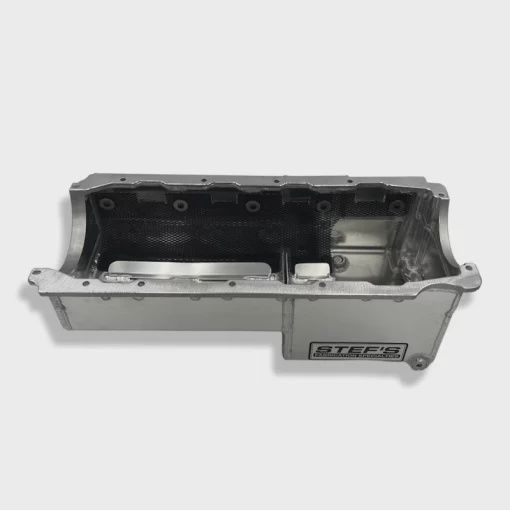

Big Block Chevy Mark IV 8″ Deep, 6 qt Oil Pan

Stef’s 1141 Super Series, kick out design, aluminum rear sump drag race pan for Big Block Chevy’s. Designed to fit GEN 4 Chevy Big Blocks that use a 2-piece rear main seal. This pan features billet ends for the seal area with 3/8″ thick side rails for leak free performance. Oil pump pickup and oil pump available separately.

We also offer a similar pan with a longer rear sump for increased capacity, see PN 1141-12.5

• For all Mark IV Big Block Chevy Standard/OEM Width Pan Rails
• For 2 Piece Rear Main Seal
• OEM / Standard Pan Rail Bolt Locations or Aftermarket – Bolt Locations in Line with 3 Center Main Caps
• Passenger Side Kickout
• Stroker Rod notches to clear up to 4.75 Stroke w/Steel Rods.
• Drag Baffle with Trap Doors
• Accel and Decel Ledges
• Aluminum Bolt In Sump Tray
• Coated Windage Tray
• Magnetic Drain Plug
• Includes Mounting Hardware
• 8″ Deep Pan holds 6 quarts in Pan + Filter
• Fits 168 Tooth Flywheel
• Works with Nippondenso or Hitachi Style Starters
• Will NOT fit with internal Titan billet oil pump
